BOBS™ instrument

(Blood Oxygen Binding System)

BOBS Instrument BOBS Instrument Front Top BOBS Instrument Side BOBS Instrument Front BOBS Instrument Back BOBS Sample Holder Insert BOBS Sample Holder BOBS Analysis Multi BOBS Analysis Absorbance Human OEC BOBS Kpa Human OEC BOBS Mmhg
BOBS Instrument
BOBS Instrument Front Top

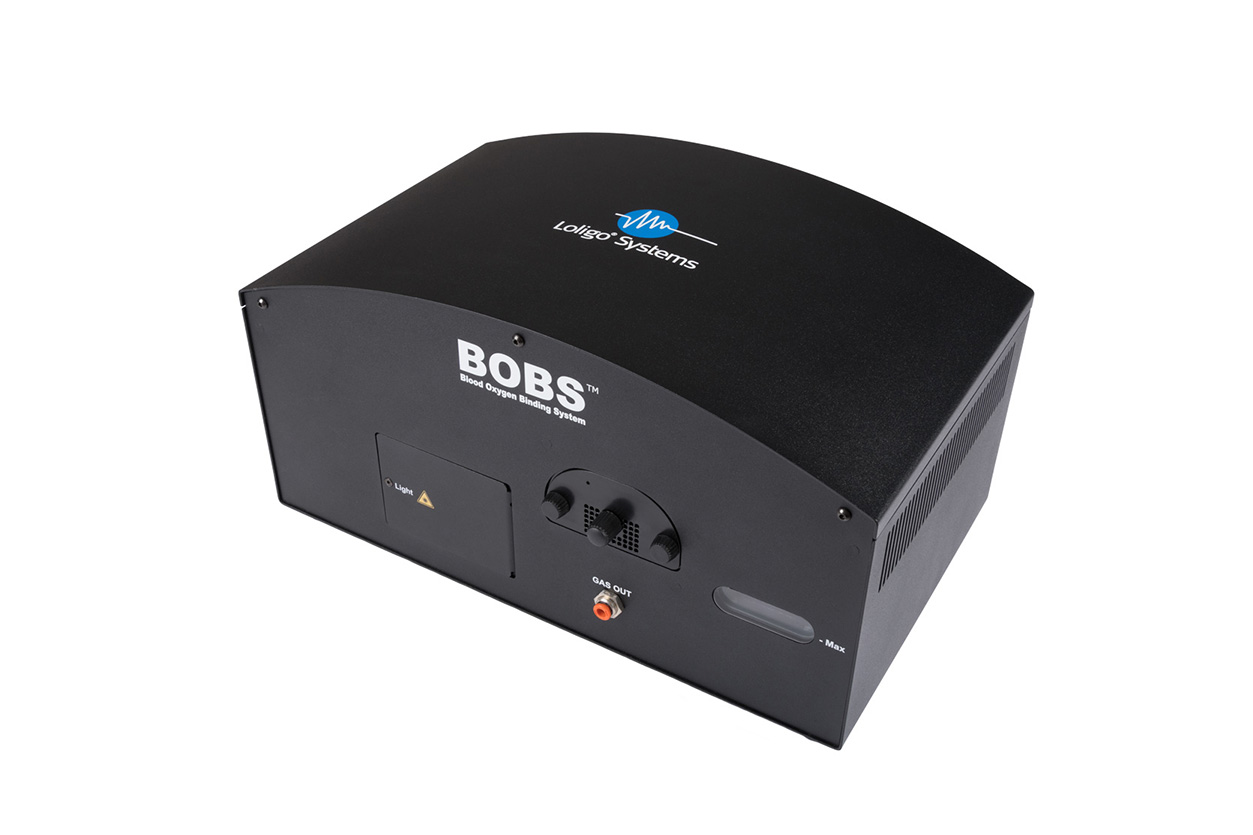

BOBS Instrument Side

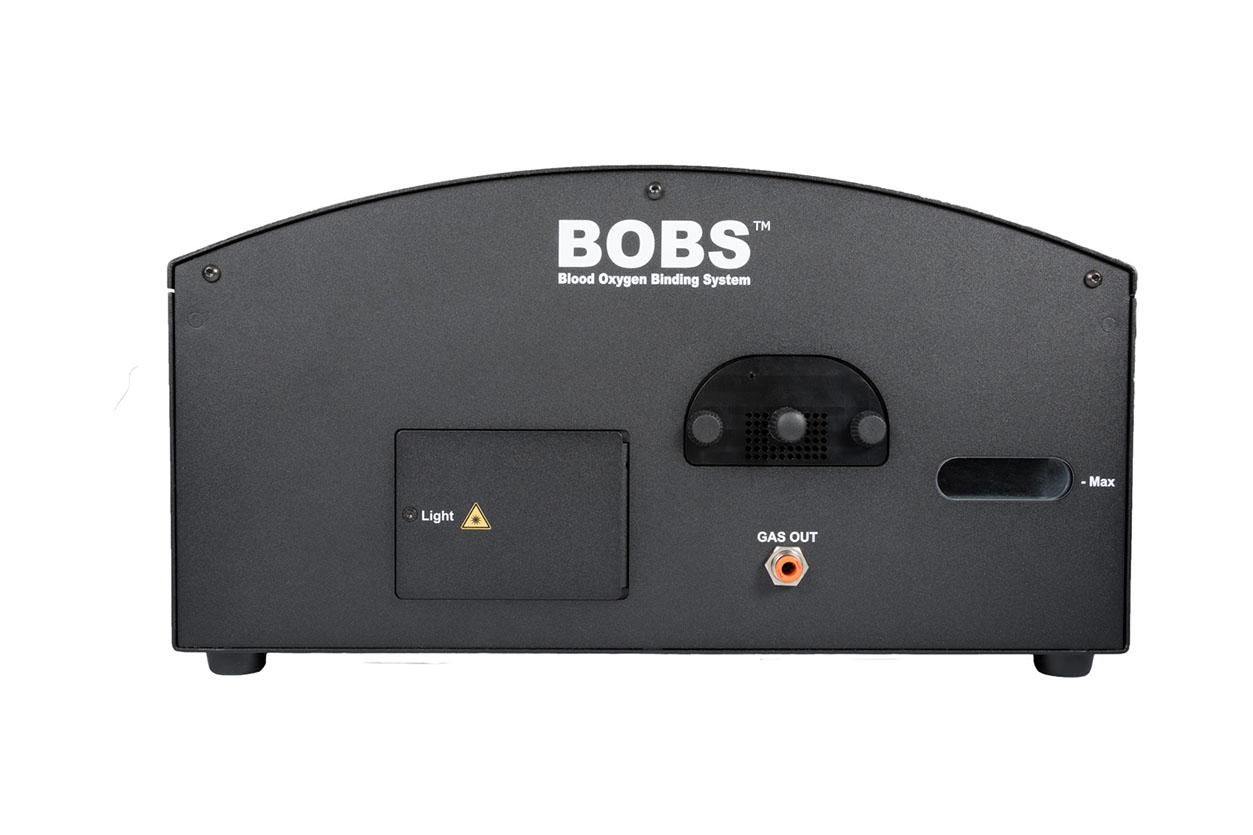

BOBS Instrument Front
BOBS Instrument Back
BOBS Sample Holder Insert
BOBS Sample Holder
BOBS Analysis Multi
BOBS Analysis Absorbance
Human OEC BOBS Kpa
Human OEC BOBS Mmhg

Features

  • Identify oxygen binding in hemoglobin or your pigments of interest!
  • P50 values and Hill coefficients compare to published values for mammalian/fish/invertebrate blood.
  • Collect full spectrum (UV-VIS) sample absorbance and get more information than with any other method.
  • Identify absorbance peaks that best define the oxygenation and deoxygenation events.
  • Isosbestic point for reference.
  • Patent # WO2015000453 A3 from The Alfred Wegener Institute. Licensed exclusively to Loligo® Systems.
  • Reference: Oellermann, Pörtner & Mark (2014). Simultaneous high-resolution pH and spectrophotometric recordings of oxygen binding in blood microvolumes. J. Exp. Biol. (DOI:10.1242/jeb.092726)



Use this patented BOBS™ instrument for determining P50 values and Hill coefficients for oxygen binding in hemoglobin and other pigments. Samples as small as 1.5 µL are placed in a modified diffusion chamber, in which pigment saturation is continuously monitored over a wide range of wavelengths (190-885 nm) resulting in highly reproducible oxygen binding curves. Digital Peltier temperature controllers and a gas humidification system allows for measurements over a wide range of sample temperatures from 10-45° C while avoiding sample desiccation. User-friendly Windows software for fully automated data collection and analysis minimizes time-consumption and enable the user to run multiple samples per hour.

Data

This is product data for the selected system:

Sample volume 1,5 - 10 µL
Dimensions 214 x 400 x 246 mm
Weight 12 kg
Gas connector type 6 mm push-in
Maximum input pressure 1 bar
Communication interface USB 2.0
Operating temperature 15 to 25 °C ( 59 to 77 °F )
Warm-up time 30 min
Wavelength 200 - 850 nm
Voltage 100-240 VAC / 50-60 Hz
Power 150 W

Included

These products are included in the system:

Optional

These products are optional for the selected system:
