Choice tank

Choice Tank From Side Low Choice Tank Red Validate Choice Tank From Up Low Choice Tank Fittings Low
Choice Tank From Side Low

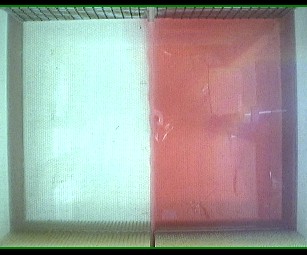

Choice Tank Red Validate

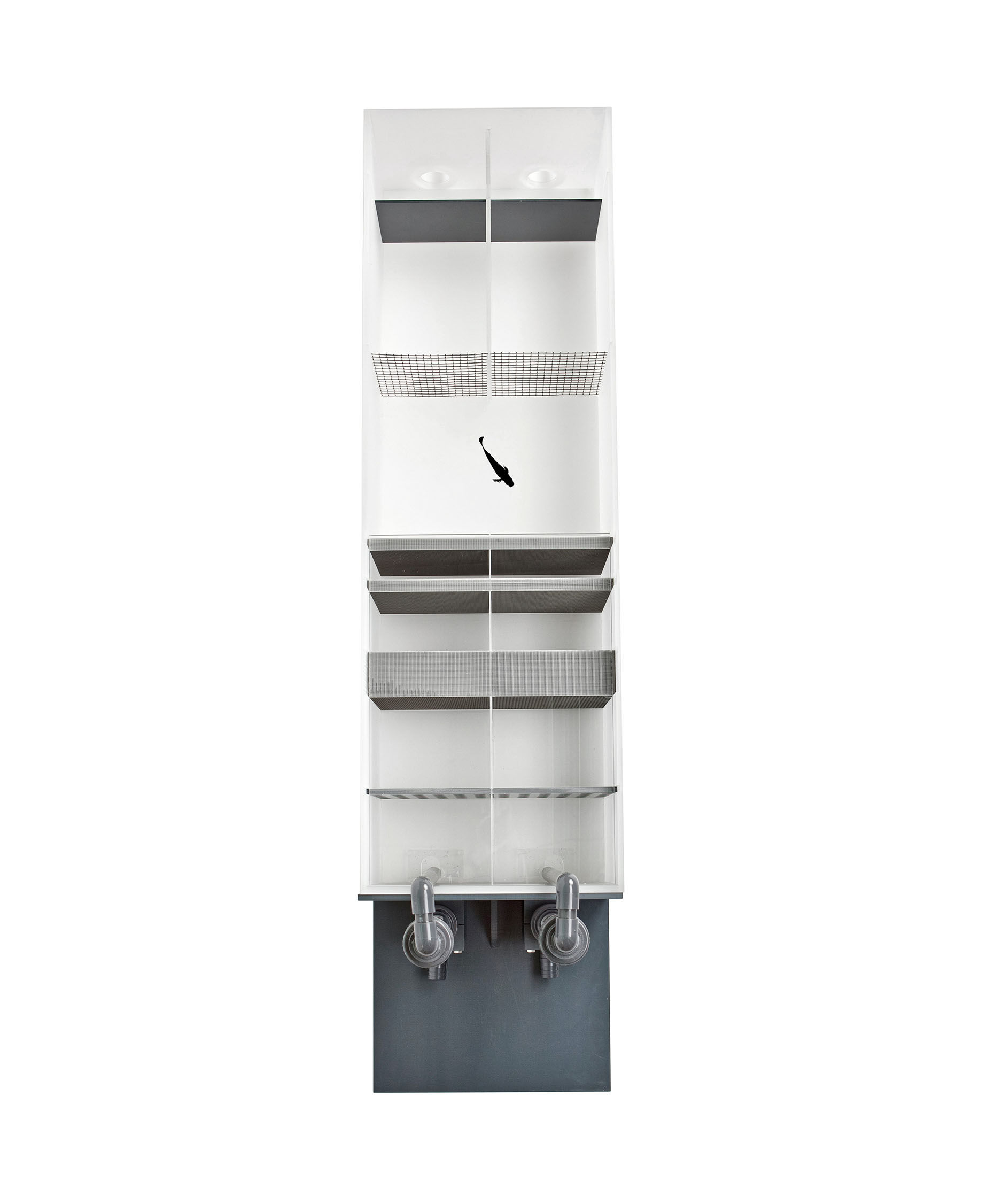

Choice Tank From Up Low

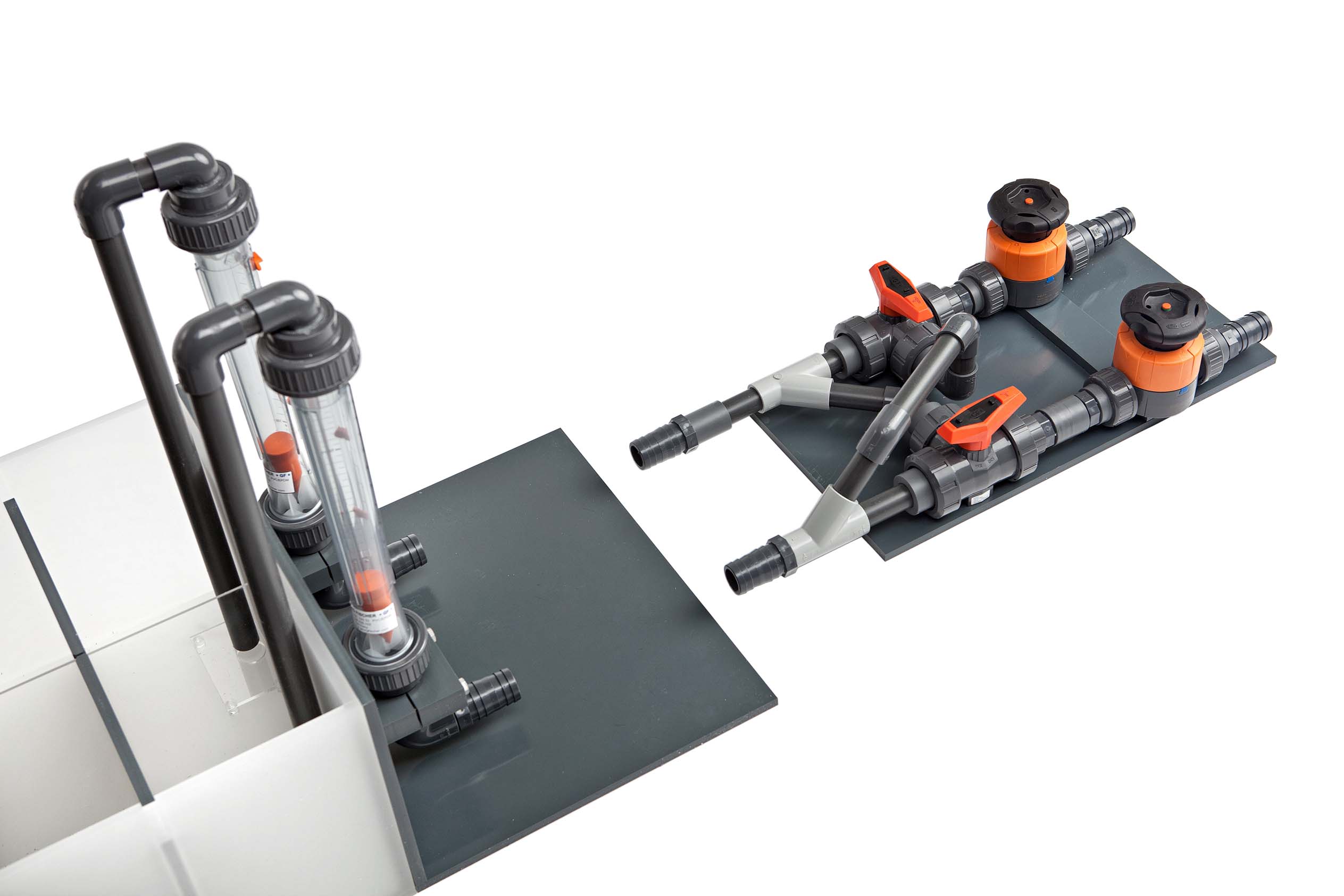

Choice Tank Fittings Low

Use this dual choice tank to test the behavior of aquatic animals moving freely between two slowly moving water columns with differing water quality (chemicals, DO, pH, CO2, turbidity etc.).

The hydrodynamic design of the choice tank creates a sharp and stable horizontal gradient inside the 32 x 40 cm test area where the animal is given a free choice of movement between two water qualities. The water depth in the tank can be set to 5, 10 or 15 cm depending on the type and size of animals or the application.

The choice tank comes with flow meters for accurate matching of flow rates from two header tanks (if feeding the tank by gravity) or two recirculatory pumps (excl.).

We offer customer-specified tanks upon request.

Data

This is product data for the selected system:

Foot print 1680 x 426 mm
Test section L318 x W400 x H50/100/150 mm
Fittings OD 1" (32 mm)

Included

These products are included in the system:

Optional

These products are optional for the selected system:

Files

These files can help you with the selected system:

Behavior

Title
Description
Version
Get
Title
Choice tank
Description
A user manual on how to set up and use the tank
Version
1.0.0
Get
