Acrylic chamber tube

(Horizontal/ID42/L100)

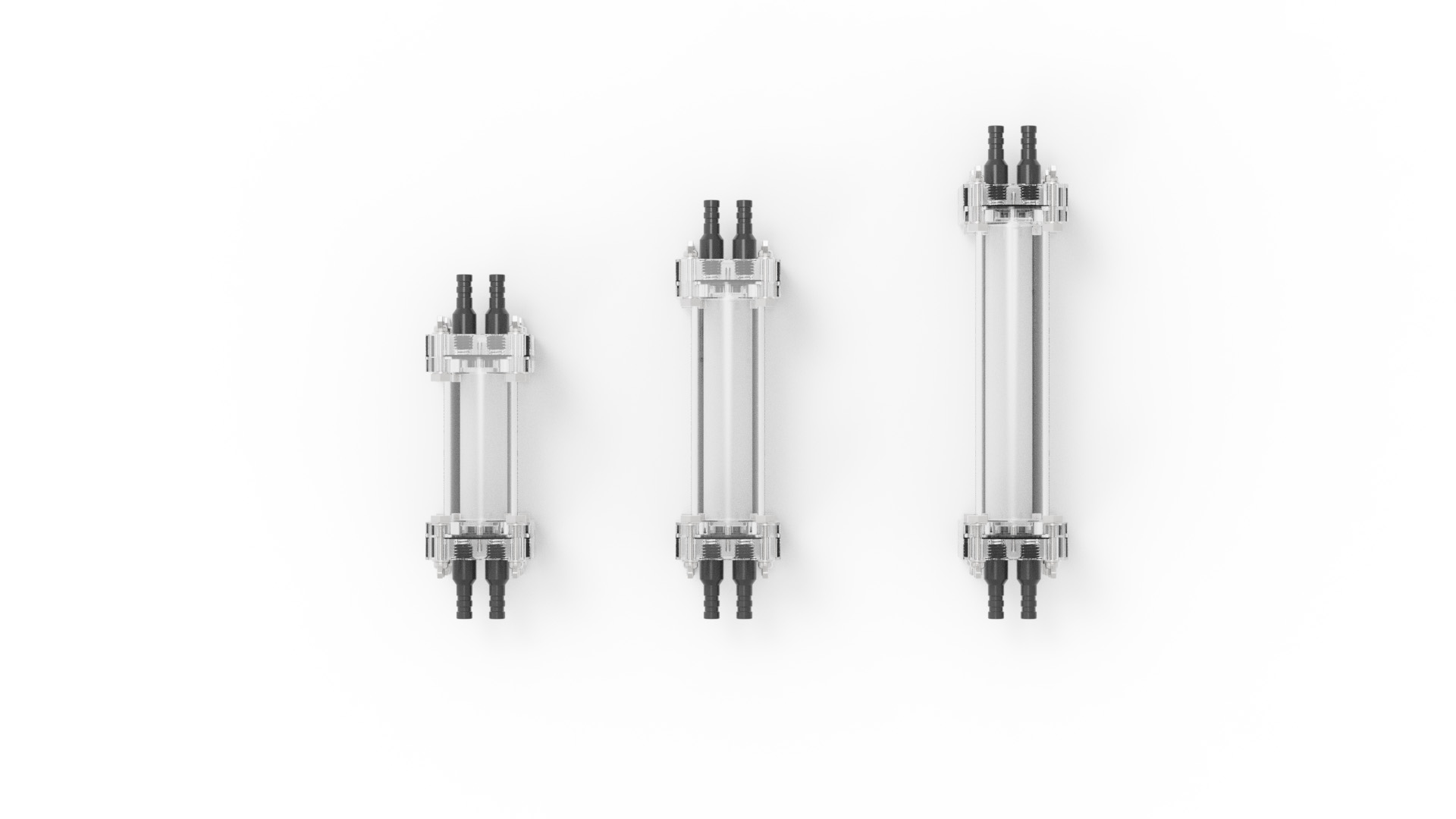

ID42 L100 TUBE TUBE DIMENSIONS 3D ID42 L100 L150 L200
ID42 L100 TUBE

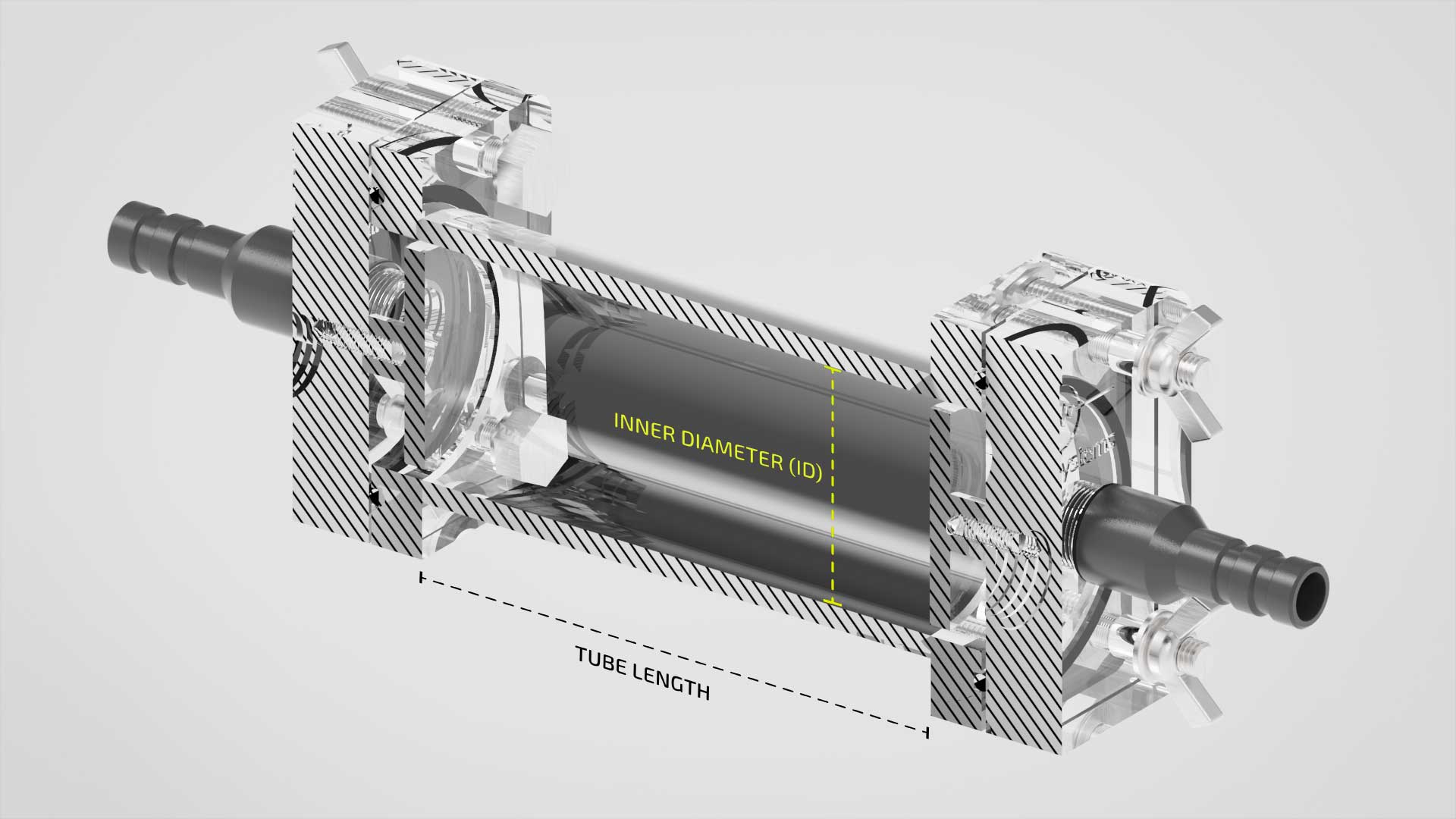

TUBE DIMENSIONS 3D
ID42 L100 L150 L200

FEATURES

  • Chamber tube for ID 42 mm chambers
  • Made from transparent acrylics
  • Integrated o-ring for gas-tight seal
  • Made for use in freshwater and full-strength seawater



This is a replacement tube for ID 42 mm horizontal chambers. Use two chamber lids with a chamber tube of the same ID to build a complete acrylic chamber. The tube comes with an integrated o-ring in each end for a gas-tight seal, and 8 x bolts for lid attachment. Chamber lids are not included.

Data

This is product data for the selected system:

Inner diameter 42 mm
Ports OD 11 mm
Length 100 mm
Volume 0.1 L

Included

These products are included in the system:

Optional

These products are optional for the selected system:

Acrylic chamber (horizontal)

ID42 LID
Acrylic chamber lid

(Horizontal/ID42)

Files

These files can help you with the selected system:

Respirometry

Title
Description
Version
Get
Title
Resting chambers - Datasheet
Description
A data sheet for glass and acrylic resting chambers
Version
1.0.0
Get
