Swim tunnel
(5L/230V/50Hz)
Product #
SW10050
Customs tariff #
90189080
Shipping weight
71.00 kg
Country of origin
DK
12,800.00 (EUR)
Features
- Planar walls for optimum imaging
- Anti-corrosive materials for minimum maintenance
- Tool free assembly for easy cleaning and servicing
- Double-lid for easy access to working section
- Adjustable vanes and collimators for modifying flow profile
- Control box for manual or automated speed control
- Re-usable strong cardboard crate for transportation
- Ports for oxygen and temperature probes
- Water bath and external motor for exact temperature control

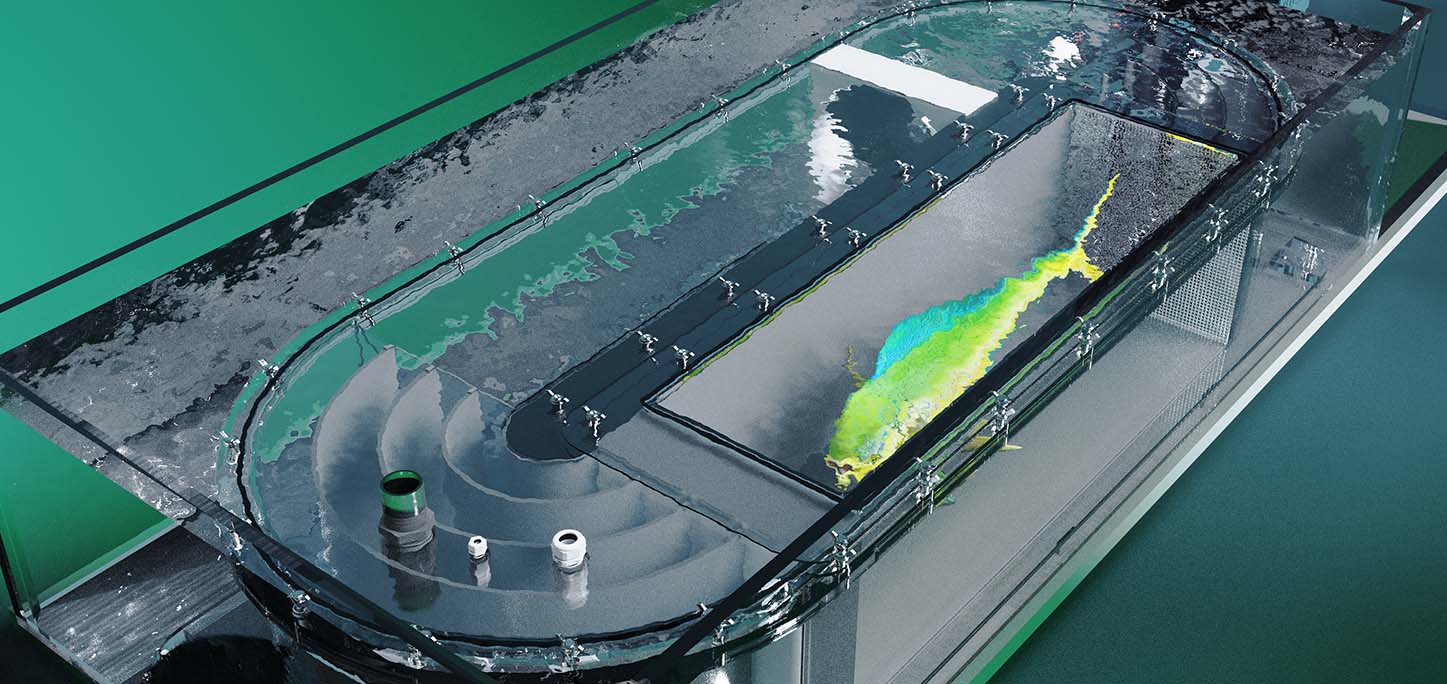

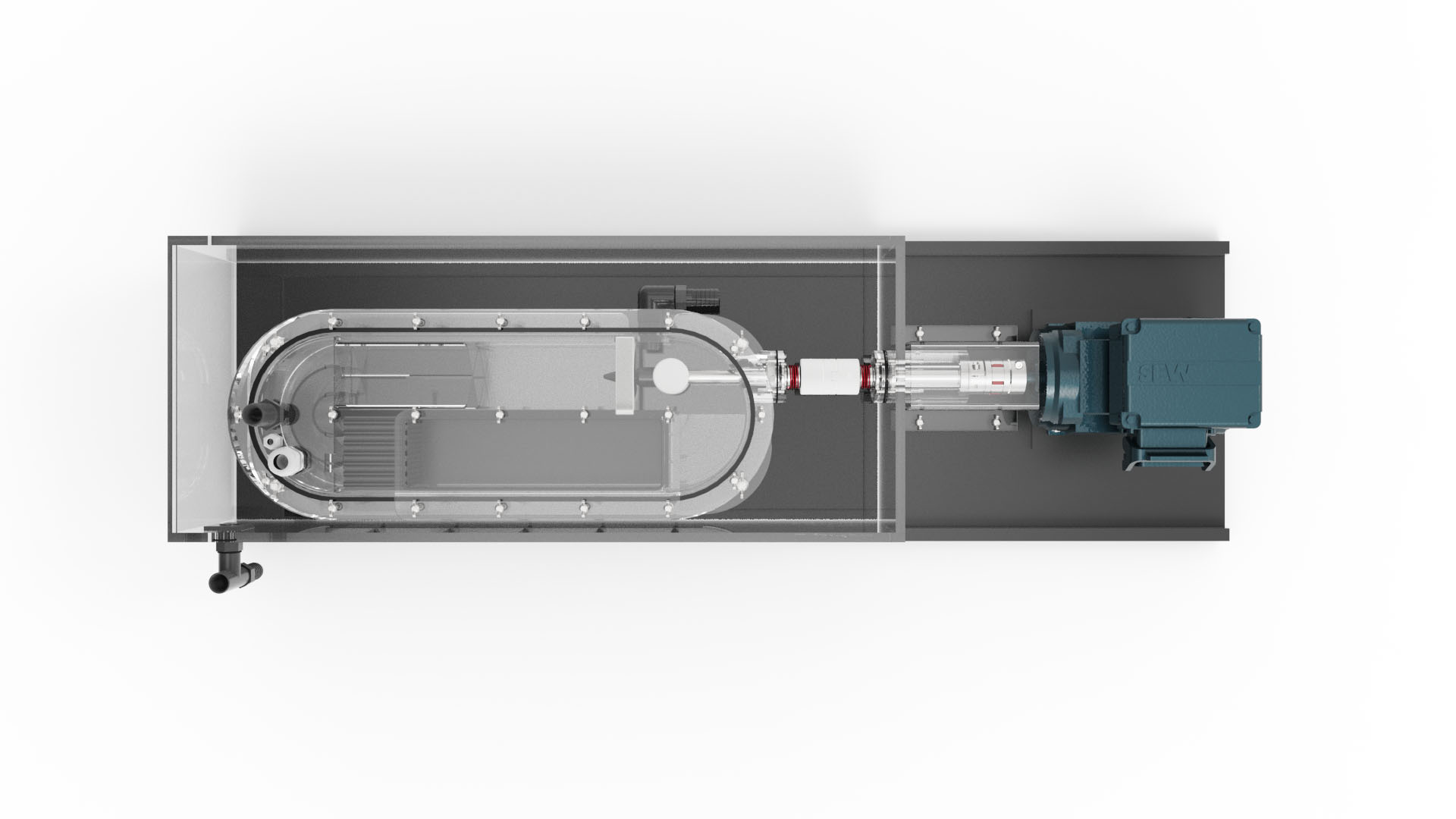

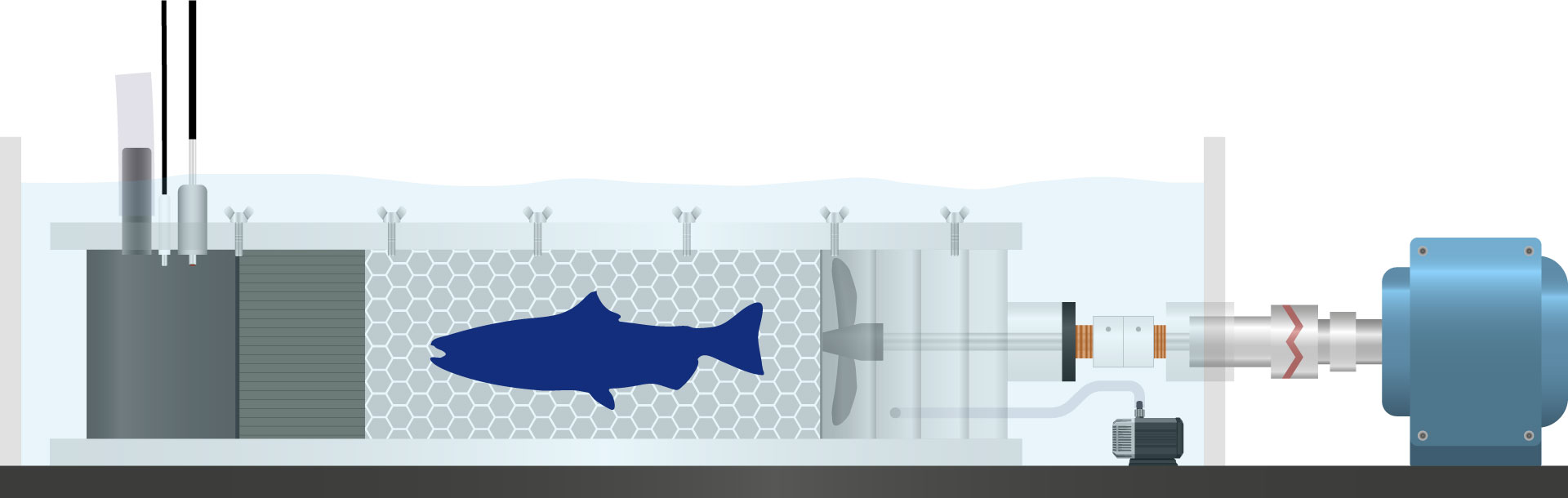

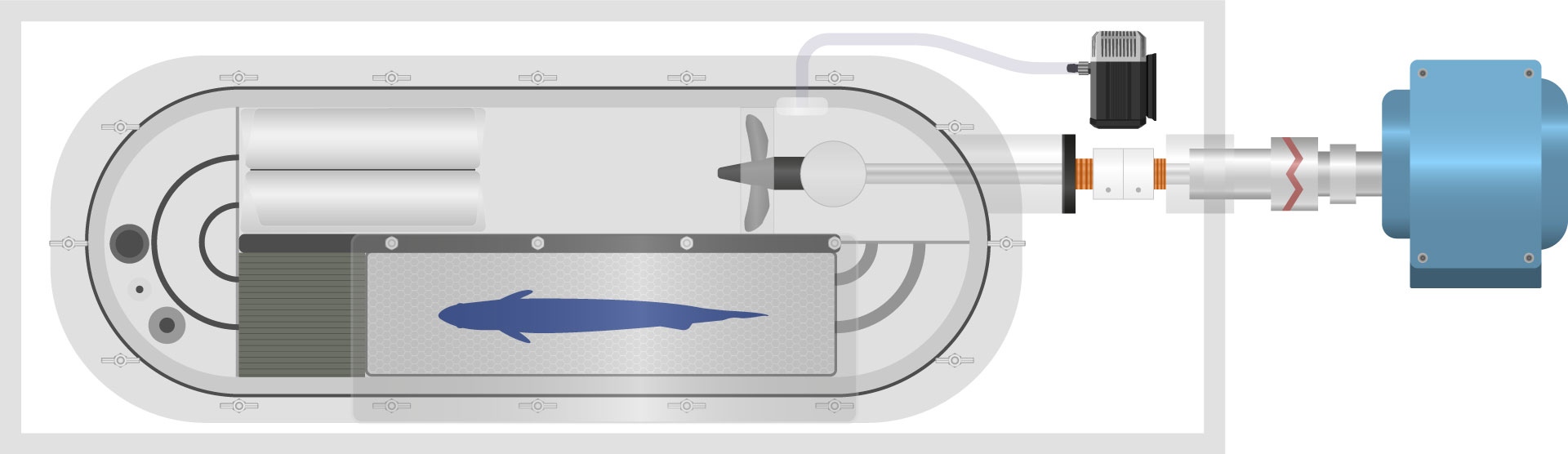

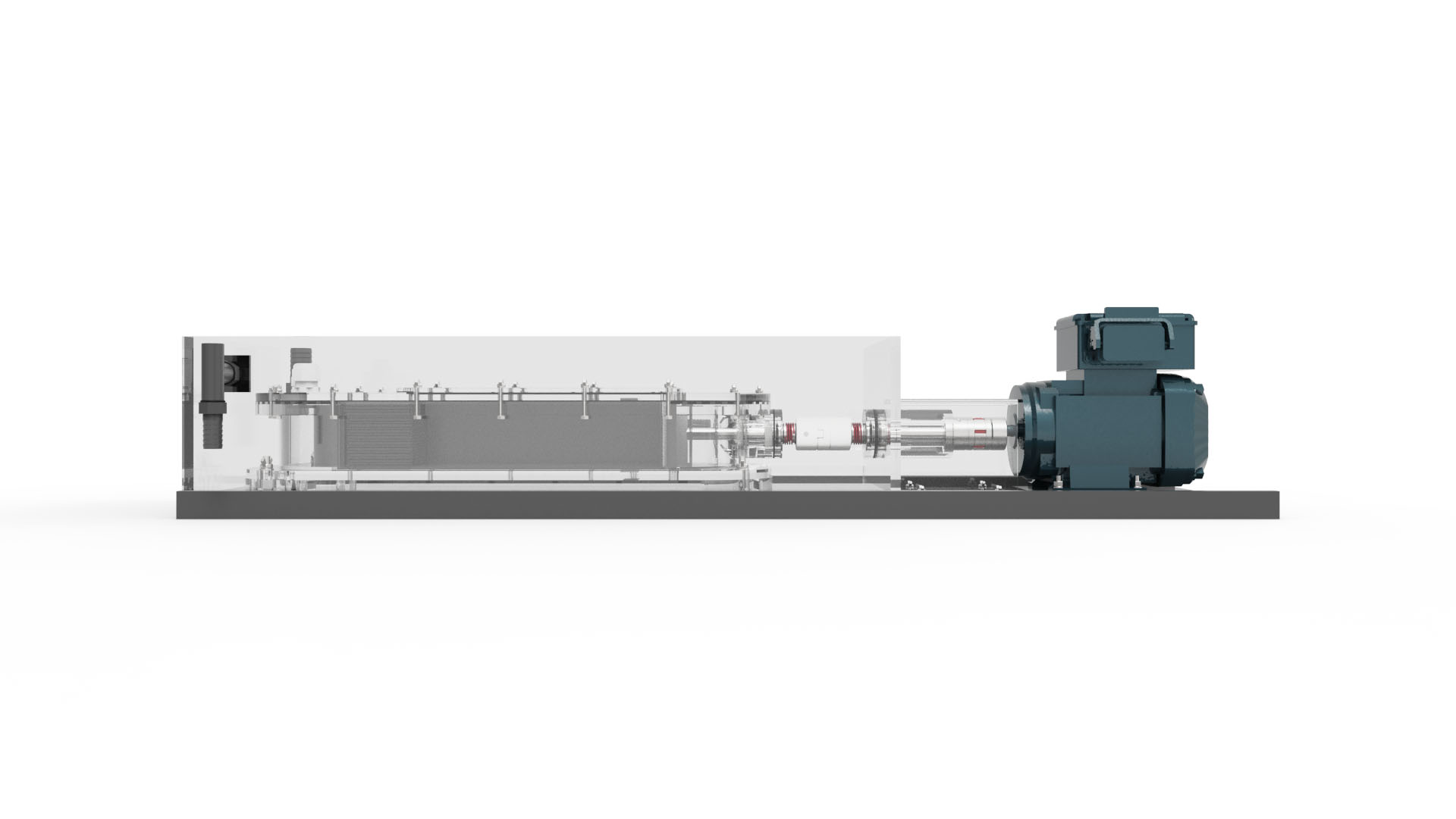

Loligo® swim tunnels have been developed for measuring the physiology, energetics, behavior, biomechanics and kinematics of swimming fish, through years of research and laboratory use. Applications also include studies of fluids, visualization of flow around objects, hydraulics, and public display of aquatic wildlife. The unique and compact design allows enough space for "free" swimming and an adequate volume for reliable oxygen consumption measurements.
Data
This is product data for the selected system:
| Water bath | 750 x 300 x 170 (L x W x H, inner) |
| Test section | 28 x 7.5 x 7.5 cm |
| Fish size | 20 - 80 g |
| Velocity | 5 - 125 cm/s |
| Foot print | 117 x 40 cm |
| Power | 230 V / 50 Hz |
| Volume | 5 L |
| Current | 3.2 A |
| Certification | CE |
Included
These products are included in the system:
Pumps
German-made submersible Eheim pump (centrifugal) for use in sea and fresh water.
Optional
These products are optional for the selected system:
Vane wheel
Accessories
Files
These files can help you with the selected system:
