Swim tunnel

(170mL/230V/50Hz)

SWIM 170 ISO SWIM 170 FRONT SWIM 170 TOP SWIM TUNNELS (2) Included In Swim Tunnel 1.5 L Mini Swim Tunnel Setup Dipping Probe

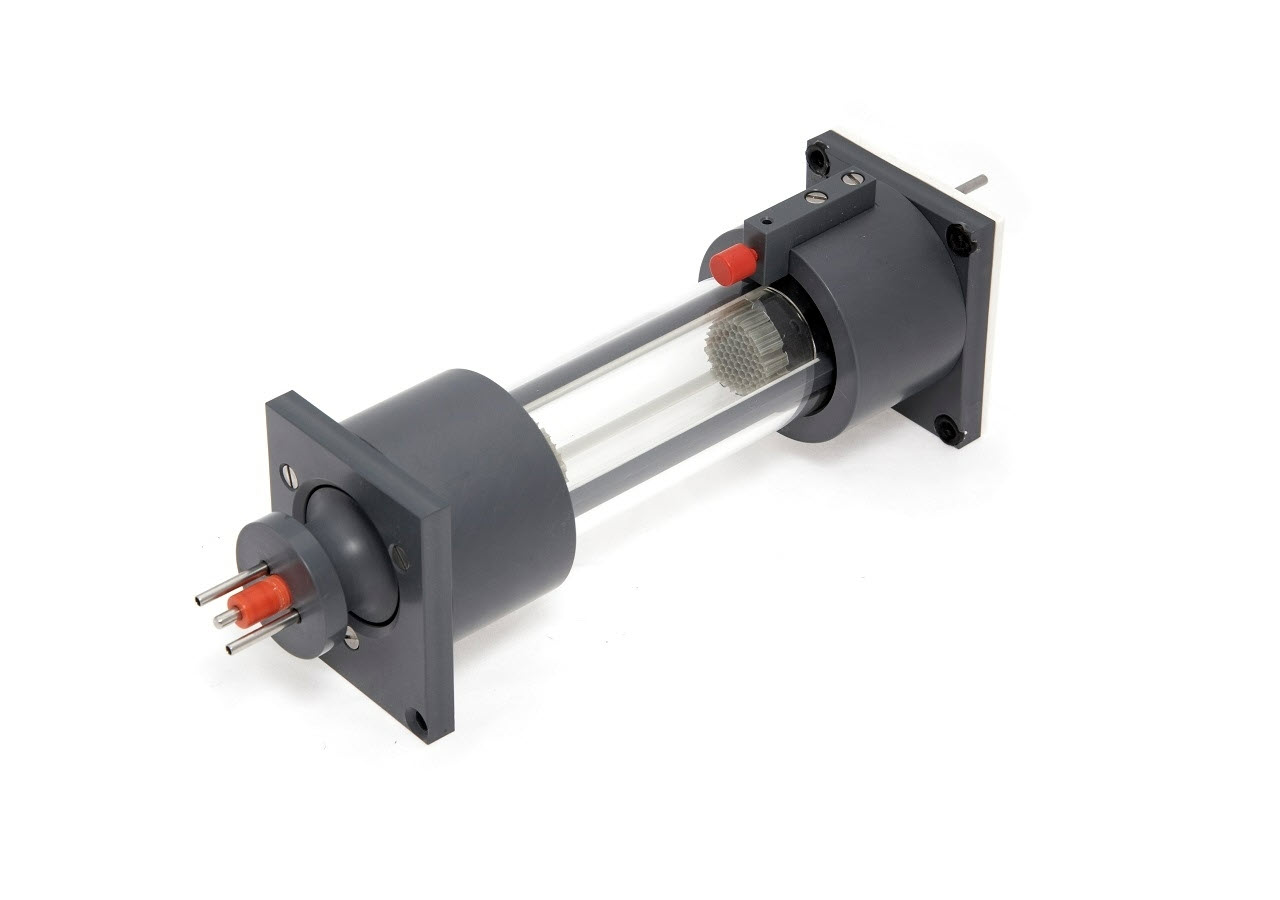

SWIM 170 ISO

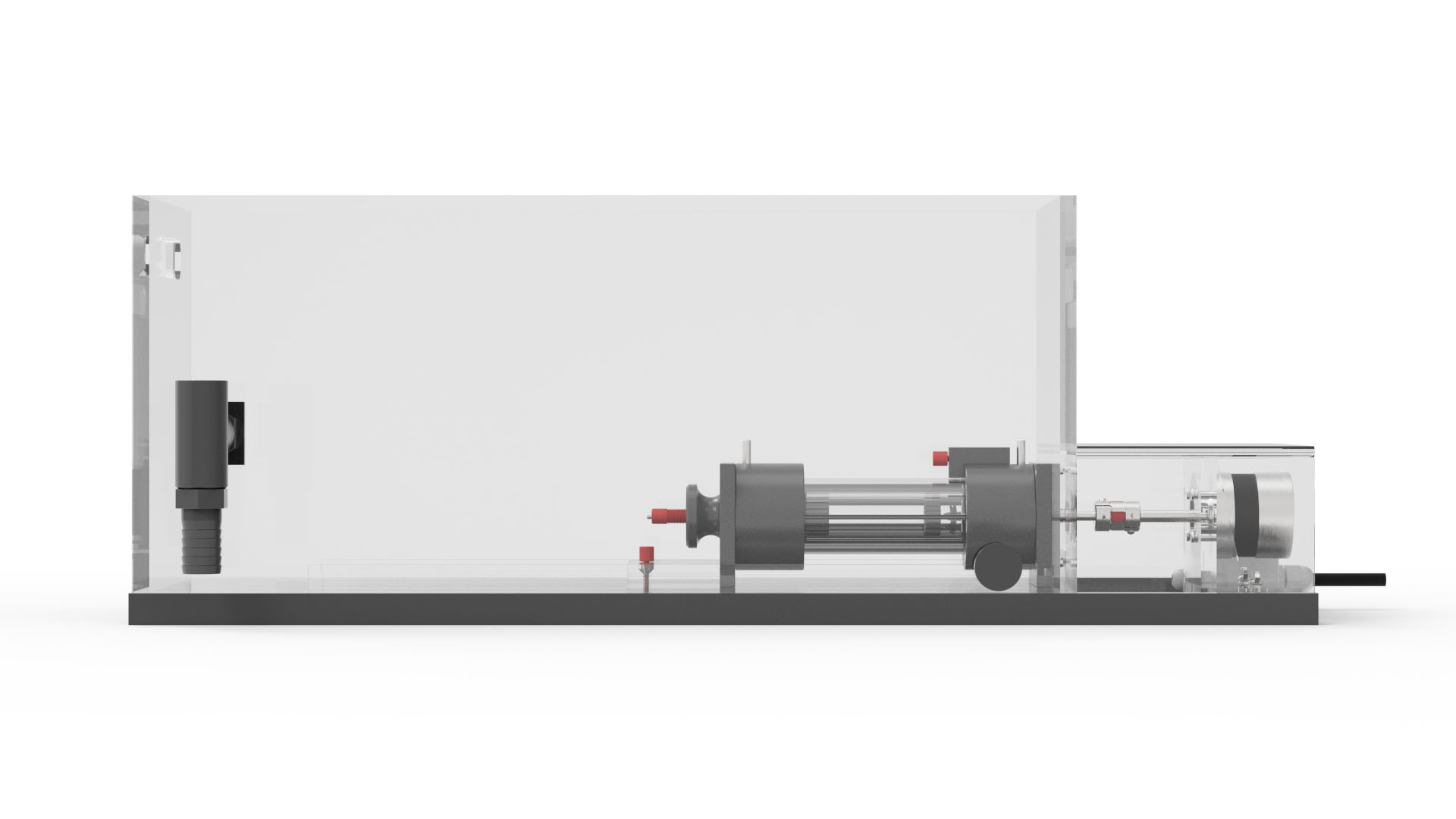

SWIM 170 FRONT

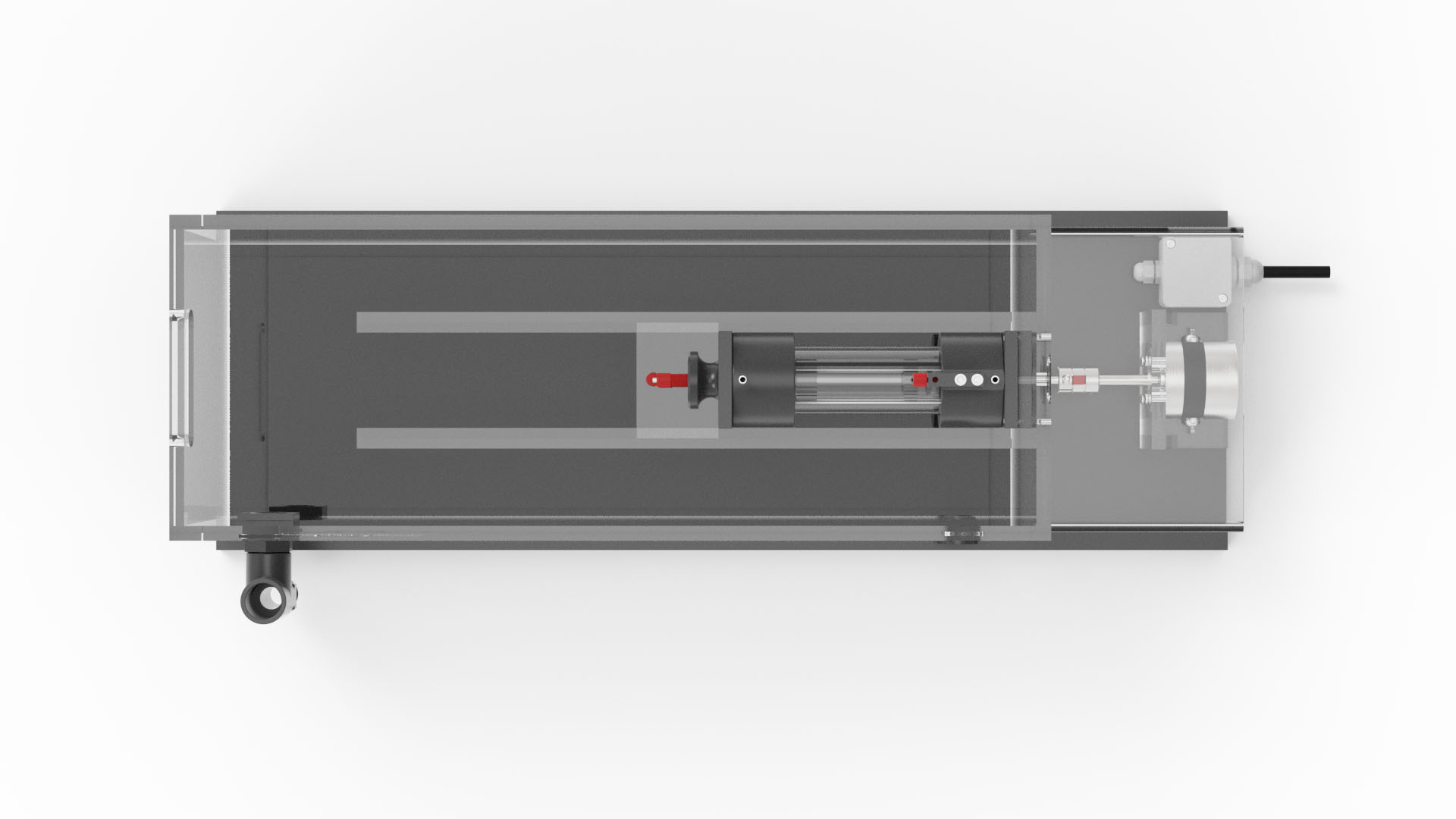

SWIM 170 TOP

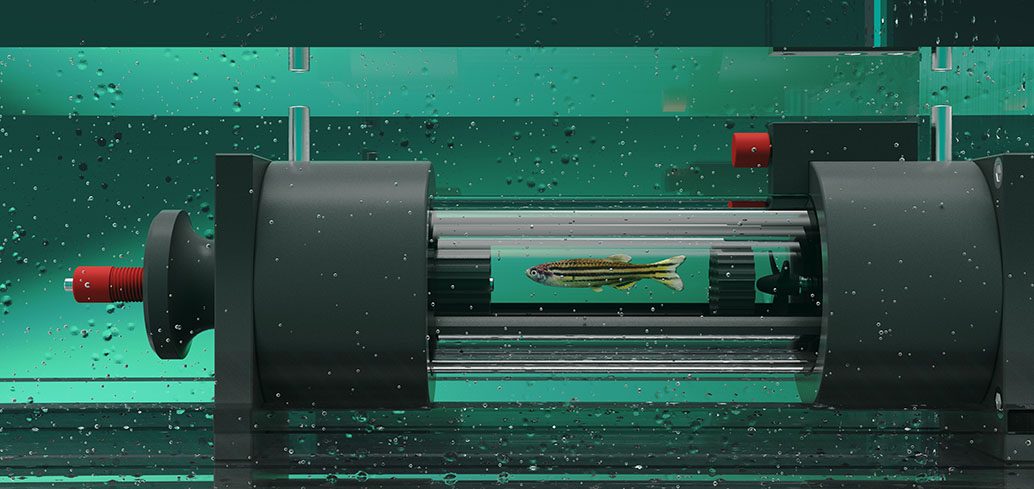

SWIM TUNNELS (2)

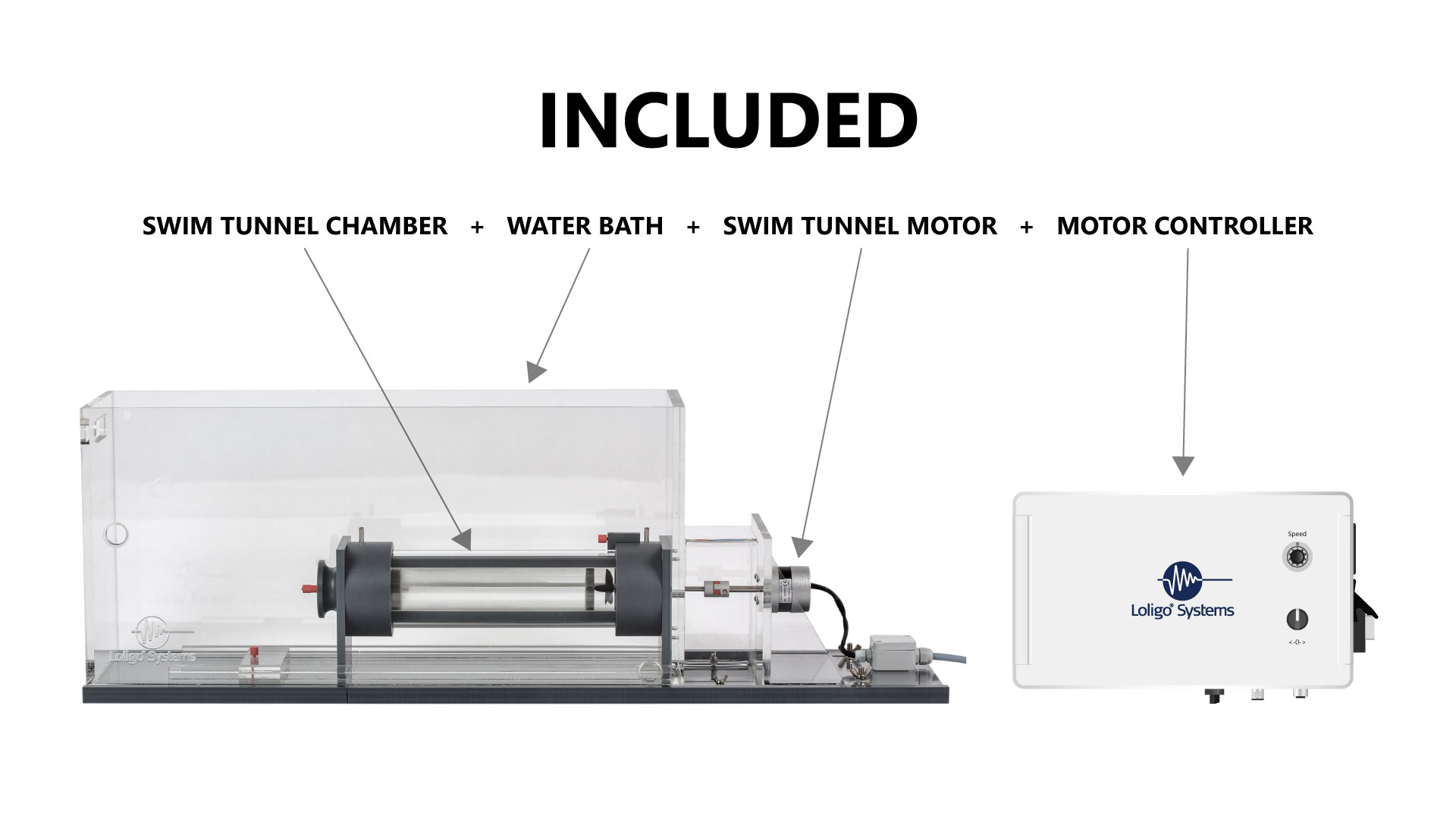

Included In Swim Tunnel 1.5 L

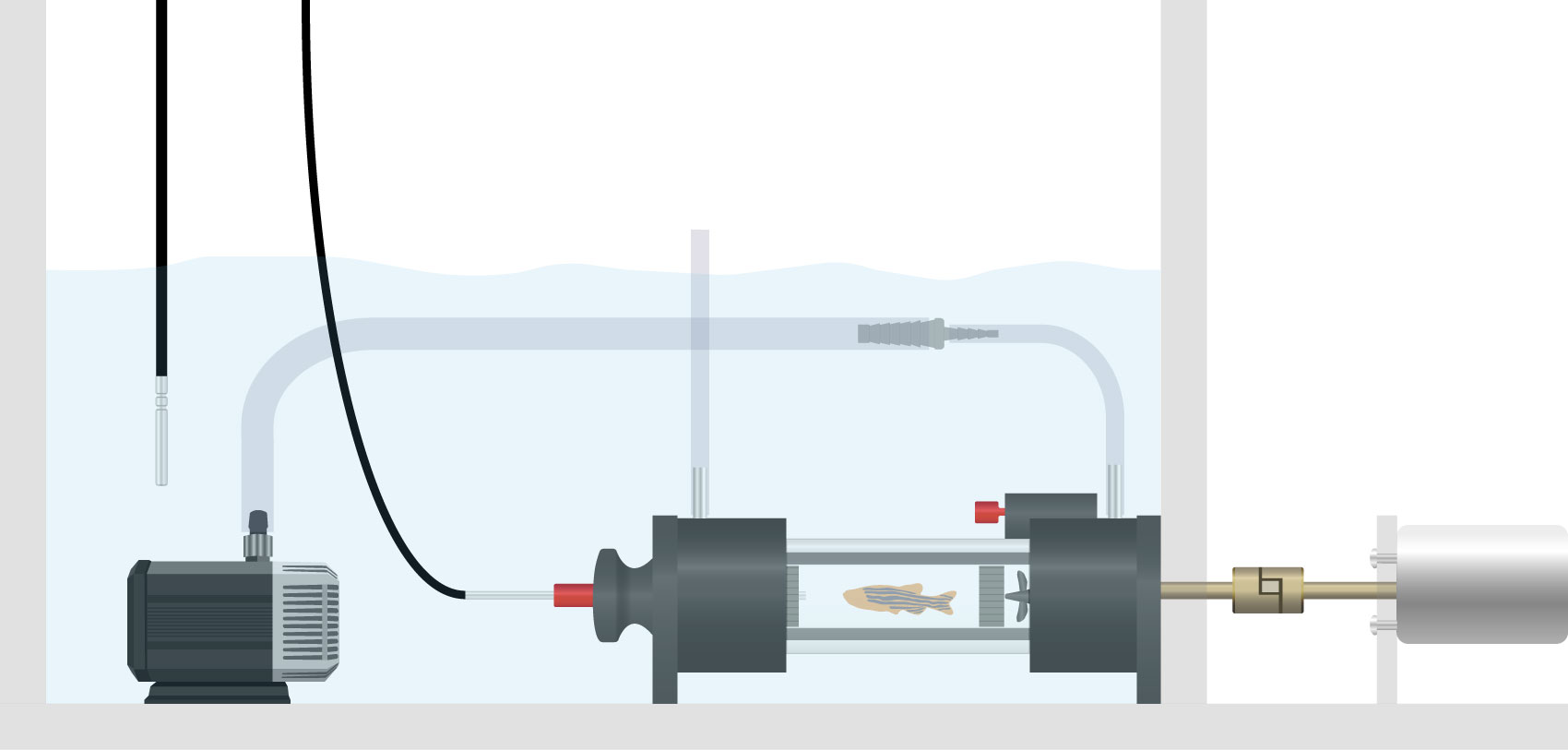

Mini Swim Tunnel Setup Dipping Probe

Features

  • Glass materials for minimum O2 uptake/release
  • Anti-corrosive materials for minimum maintenance
  • Tool free assembly for easy cleaning and servicing
  • Optional replacement glass tubes for shorter/longer working section
  • Strong brushless DC motor for high speeds and long life-time
  • Control box for manual or automated speed control
  • Re-usable strong cardboard crate for transportation
  • Ports and fittings for various oxygen sensors
  • Water bath and external motor for exact temperature control



Loligo® swim tunnels have been developed for measuring the physiology, energetics, behavior, biomechanics and kinematics of swimming fish, through years of research and laboratory use. Applications also include studies of fluids, visualization of flow around objects, hydraulics, and public display of aquatic wildlife. The unique and compact design allows enough space for "free" swimming and an adequate volume for reliable oxygen consumption measurements.

Data

This is product data for the selected system:

Water bath 575 x 200 x 250 (L x W x H, inner)
Test section ID 26.4 x L 100 mm
Fish size 1 - 4 g
Velocity 0.7 - 50 cm/s
Foot print 75 x 25 cm
Power 230 V / 50 Hz
Volume 170 mL
Current 0.5 A
Certification CE

Included

These products are included in the system:

Pumps

1
Eheim Universal 1046 pump (5L/min/230V/50Hz)
Eheim Pump

German-made submersible Eheim pump (centrifugal) for use in sea and fresh water.

Optional

These products are optional for the selected system:

DPTV

FLOW TRACKING KIT
Flow tracking kit

Accessories

Inner Glass Tube
Inner glass tube for swim tunnel

(170mL)

Outer Glass Tube
Outer glass tube for swim tunnel

(170mL)

Fittings

HOSE ELBOW 3 4.633
Hose barbed elbow

(3.14 / 4.8 mm tube)

Files

These files can help you with the selected system:

Swim Tunnels

Title
Description
Version
Get
Title
Mini swim tunnel
Description
A step by step guide on how to set up a 170 and 1500 ml swim tunnel
Version
1.2
Get
Title
Swim tunnels
Description
A data sheet for the 5-850 L swim tunnels
Version
1.0.0
Get
Title
Swim tunnels
Description
A user manual for our swim tunnels
Version
1.0.1
Get
