OXY-1 ST Trace
Product #
OX11360
Customs tariff #
90273000
Shipping weight
0.27 kg
Country of origin
DE
3,530.00 (EUR)
Features
- Use with standard (0-100 %) and trace (0-10 %) sensors
- Use with needle-type and implantable micro oxygen sensors
- USB for power and PC communication
- Software compensation for temperature, pressure and salinity
- Compact housing

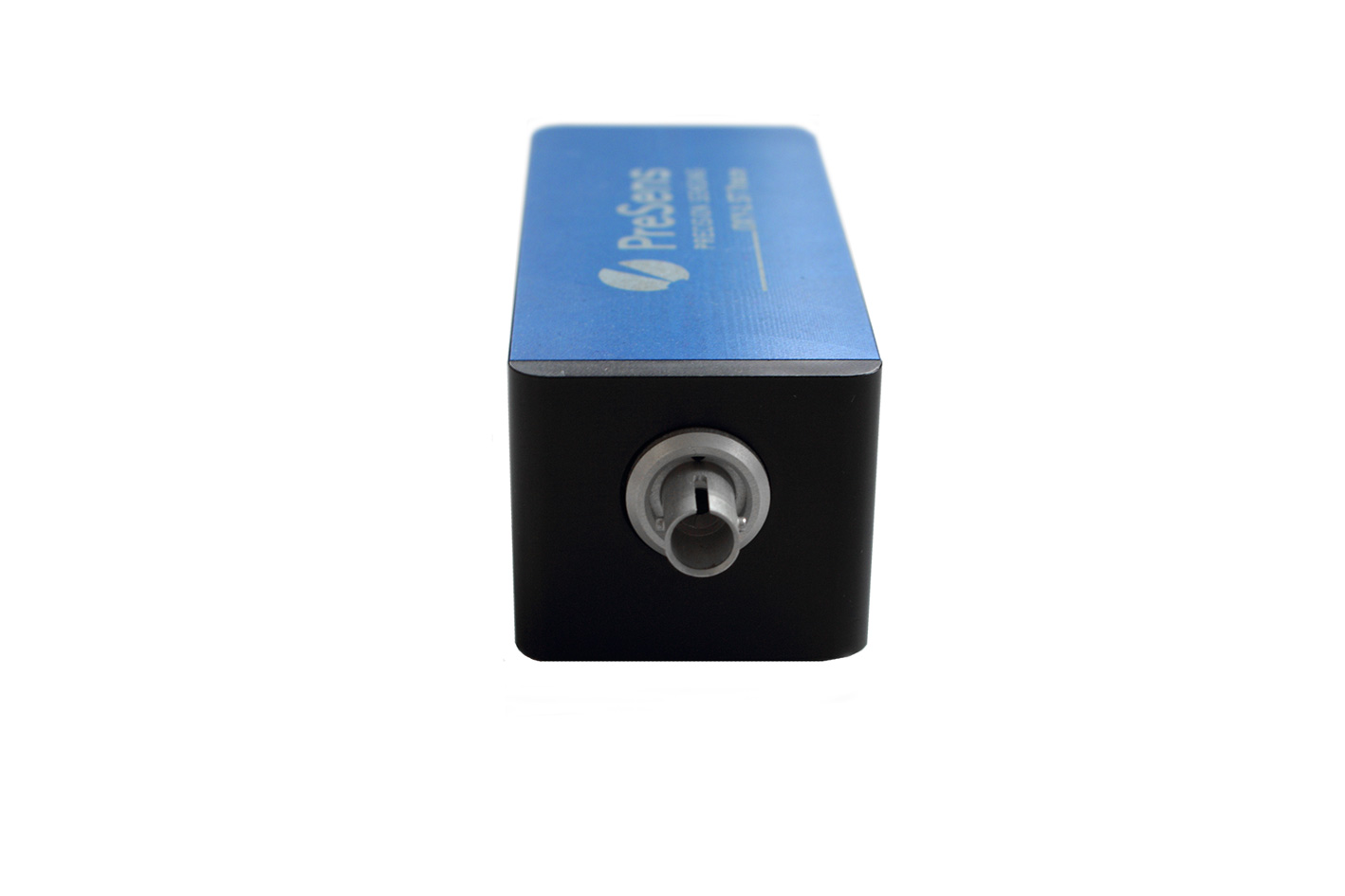

Use this single-channel oxygen meter with standard fiber optic microsensors for 0-100% O2 range and trace sensors for 0-10 % O2 range, e.g., for invasive physiology, micro profiling etc. The device is powered via USB and has a temperature channel for real-time compensation of oxygen values if connecting an optional Pt100 temperature sensor. Windows software is included, and several devices can be controlled simultaneously from a single PC.
Data
This is product data for the selected system:
| Oxygen sensor | Microsensor with ST connector (PSt7/PSt8) |
| Temperature input | Pt100 temperature connector (not included) |
| Power supply | 5 VDC (via USB) |
| Temperature | operating: from 0 °C to + 50 °C / storage: from - 20 °C to + 70 °C |
| Relative humidity | 0 % to 80 % (non-condensing) |
| Dimensions | 95 mm (with connectors) x 34 mm x 30 mm |
| Digital interface | USB-2.0-Mini-B cable (included) |
Included
These products are included in the system:
Optional
These products are optional for the selected system:
Sensors
Files
These files can help you with the selected system:
